Single-Axis
Our single-axis laser micrometers measure product diameter and position from a single
direction. Single-axis measurement offers the most application and installation flexibility and is ideal for:
- Situations when clearance is needed from obstructions, moving, or hot products
- Integration for custom measurement machine applications
- Specific measurement configurations or “virtual” multi-axis applications
These micrometers provide accurate measurements regardless of its orientation or line
speed.
4 YEAR WARRANTY
We’re so confident in our products that we guarantee every part we manufacture with an industry-leading four-year warranty.
TOTAL VU™
These products are compatible with the Total Vu™ platform for complete product and process monitoring, reporting, and control. VIEW TOTAL VU PRODUCTS
MADE IN THE USA
We’re a 100% U.S. owned and operated company. We’re proud to design and build our products at our Fairborn, Ohio headquarters.
ETHERNET INTERFACE
These products use a standard Ethernet connection to transfer data between the device and the host processor.
Product Model Comparison
 Axion103™ |  TLAser122™ |  TLAser122s™ |  Axion130™ |  Axion160™ |  Axion1120™ |  Axion1240™ |
|
|---|---|---|---|---|---|---|---|
| Measurement Range | .0006˝ – .086˝ [.015mm [15μm] – 2.2mm] | .0015˝ – .866˝ [.038mm – 22mm] | .003˝ – .866˝ [.076mm – 22mm] | 0.007˝ – 1.15˝ [0.178mm – 29.2mm] | 0.010˝ – 2.3˝ [.254mm – 58mm] | 0.028˝ – 4.55˝ [0.711mm – 116mm] | .036″ – 9.1″ [.914mm – 231mm] |
| Measurements per second (Hz)¹ | 1200 2400 (optional) | 400 | 400 | 1600 4000 (optional) | 1600 4000 (optional) | 1600 4000 (optional) | 1600 (high-speed option not available) |
| Axes of measurement | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Gate Size | .114˝ [2.9mm] | .91˝ [23.1mm] | .91˝ [23.1mm] | 1.18˝ [30mm] | 2.36″ [60mm] | 4.72″ [120mm] | 9.45″ [240mm] |
| Resolution | .0000001˝ [.0025µm] | .000001˝ [.025µm] | .000001˝ [.025µm] | .000001˝ [.025µm] | .000001˝ [.025µm] | .000001˝ [.025µm] | .000001˝ [.025µm] |
| Repeatability² Unaveraged | ±.00005˝ [±1.25µm] | ±.0001˝ [±2.5µm] | ±.0001˝ [±2.5µm] | ±.0004˝ [±10µm] | ±.0010˝ [±25µm] | ±.002˝ [±.051mm] | ±.004″ [±.1mm] |
| Repeatability² Two Second | ±.000001˝ [±.025µm] | ±.000005˝ [±.125µm] | ±.000005˝ [±.125µm] | ±.00001˝ [±.25µm] | ±.00002˝ [±.5µm] | ±.00004˝ [±1.0µm] | ±.00008″ [±2.0µm] |
| Positional Error³ | ±.00001˝ [±.25µm] | ±.0001˝ [±2.5µm] | ±.0001˝ [±2.5µm] | ±.0001˝ [±2.5µm] | ±.0002˝ [±5µm] | ±.0004˝ [±10µm] | ±.0008″ [±20µm] |
| Approx. Dimensions [H x W x D] | 4.345˝ x 8.24˝ x 1.862˝ [110mm x 209mm x 47mm] | 4˝ x 10˝ x 1.25˝ [102mm x 254mm x 32mm] | Transmitter: 4.2˝ x 5.3˝ x 1.25˝ [107mm x 135mm x 32mm] Receiver: 4˝ x 3˝ x 1.25˝ [102mm x 77mm x 32mm] | Transmitter – 4.95˝ x 8.75˝ x 2˝ [126mm x 222mm x 51mm] Receiver – 4.95˝ x 4˝ x 2˝ [126mm x 102mm x 51mm] | Transmitter – 7.5˝ x 8.5˝ x 2˝ [191mm x 216mm x 51mm] Receiver – 7.5˝ x 4˝ x 2˝ [191mm x 102mm x 51mm] | Transmitter – 10.25˝ x 10.7˝ x 2˝ [260mm x 272mm x 51mm] Receiver – 10.25˝ x 6.5˝ x 2˝ [260mm x 165mm x 51mm] | Transmitter – 22.4″ x 12.5″ x 3″ [569 x 317.5 x 76.2mm] Receiver – 12.5″ x 12.5″ x 3″ [158.75 x 158.75 x 76.2mm] |
| Light Source | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW | Visible red laser diode, Laser Class II, 675nm wavelength [nominal], < 1.0 mW |
| Approx. Weight | 3.5 lbs [1.59kg] | 2.6 lbs [1.2kg] | 2.6 lbs [1.2kg] | 11.5 lbs [5.2 kg] | 16 lbs [7.25kg] | 21 lbs [9.5kg] | 89 lbs [40.4kg] |
| Power requirements | 100-240 VAC 50/60 Hz 50 W max. | 12VDC 125mA, +5VDC 75mA, –5VDC 50mA Provided by host PC or external NetLinc | 12VDC 125mA, +5VDC 75mA, –5VDC 50mA Provided by host PC or external NetLinc | 100-240 VAC 50/60 Hz 50 W max. | 100-240 VAC 50/60 Hz 50 W max. | 100-240 VAC 50/60 Hz 50 W max. | 100-240 VAC 50/60 Hz 50 W max. |
| Cabling | Ethernet Cat 5 or higher rating | Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m] Custom lengths, connectors, cable construction, etc., quoted on request | Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m] Custom lengths, connectors, cable construction, etc., quoted on request | Ethernet Cat 5 or higher rating | Ethernet Cat 5 or higher rating | Ethernet Cat 5 or higher rating | Ethernet Cat 5 or higher rating |
| HMI Options | Total Vu™ [via NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via external NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via external NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via NetLinc™, TLAser400™, or μLinc™], SmartLinc™ | Total Vu™ [via NetLinc™, TLAser400™, or μLinc™], SmartLinc™ |
¹ Measurement rate is the number of times per second the measurement field is scanned.
² TLAser103 Repeatability applies to parts 0.08″ [2.04mm] and under. | TLAser122 Repeatability applies to parts 0.8″ [20.4mm] and under. | TLAser122s Repeatability applies to parts 0.8″ [20.4mm] and under. | TLAser130s Repeatability applies to parts 1.0″ [25.4mm] and under. | TLAser160s Repeatability applies to parts 2.0″ [51mm] and under. | TLAser1120s Repeatability applies to parts 4.0″ [101.6mm] and under. | TLAser1240s Repeatability applies to parts 8.0″ [203.2mm] and under.
³ TLAser103 Positional error applies to center 0.079″ [2.03mm]. | TLAser122 Positional error applies to center 0.79″ [20.3mm]. | TLAser122s Positional error applies to center 0.79″ [20.3mm]. | TLAser130s Positional error applies to center 1.0″ [25.4mm]. | TLAser160s Positional error applies to center 2.0″ [51mm]. | TLAser1120s Positional error applies to center 4.0″ [101.6mm]. | TLAser1240s Positional error applies to center 8.0″ [203.2mm].
®SolidWorks is a registered trademark of Dassault Systèmes SOLIDWORKS Corp.

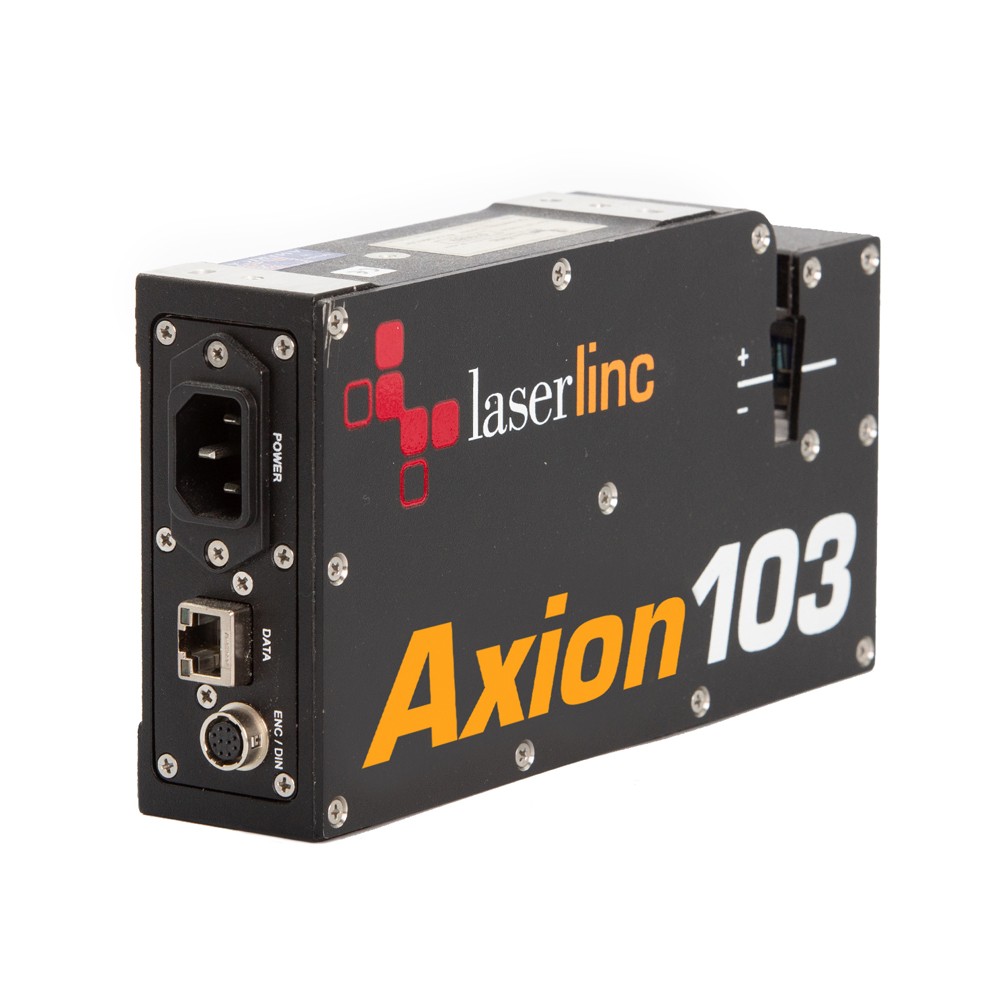

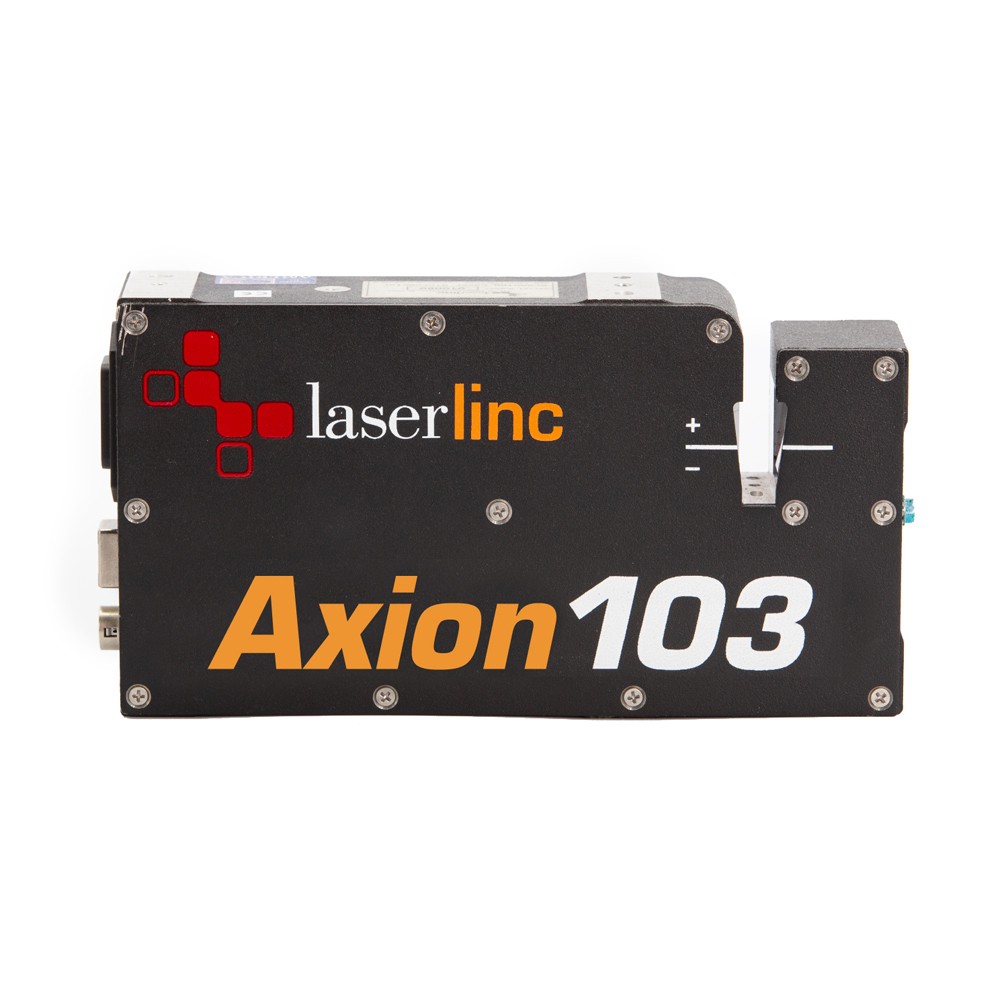

Axion103
- Measurement range of 0.0006” to 0.0866” [0.015mm to 2.2mm]
- Measurement Rate (Hz)¹ (standard): 1,200 (option): 2,400
- Gate Size .114˝ [2.9mm]
- Approx. Dimensions 4.345˝ x 8.24˝ x 1.862˝ [110mm x 209mm x 47mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

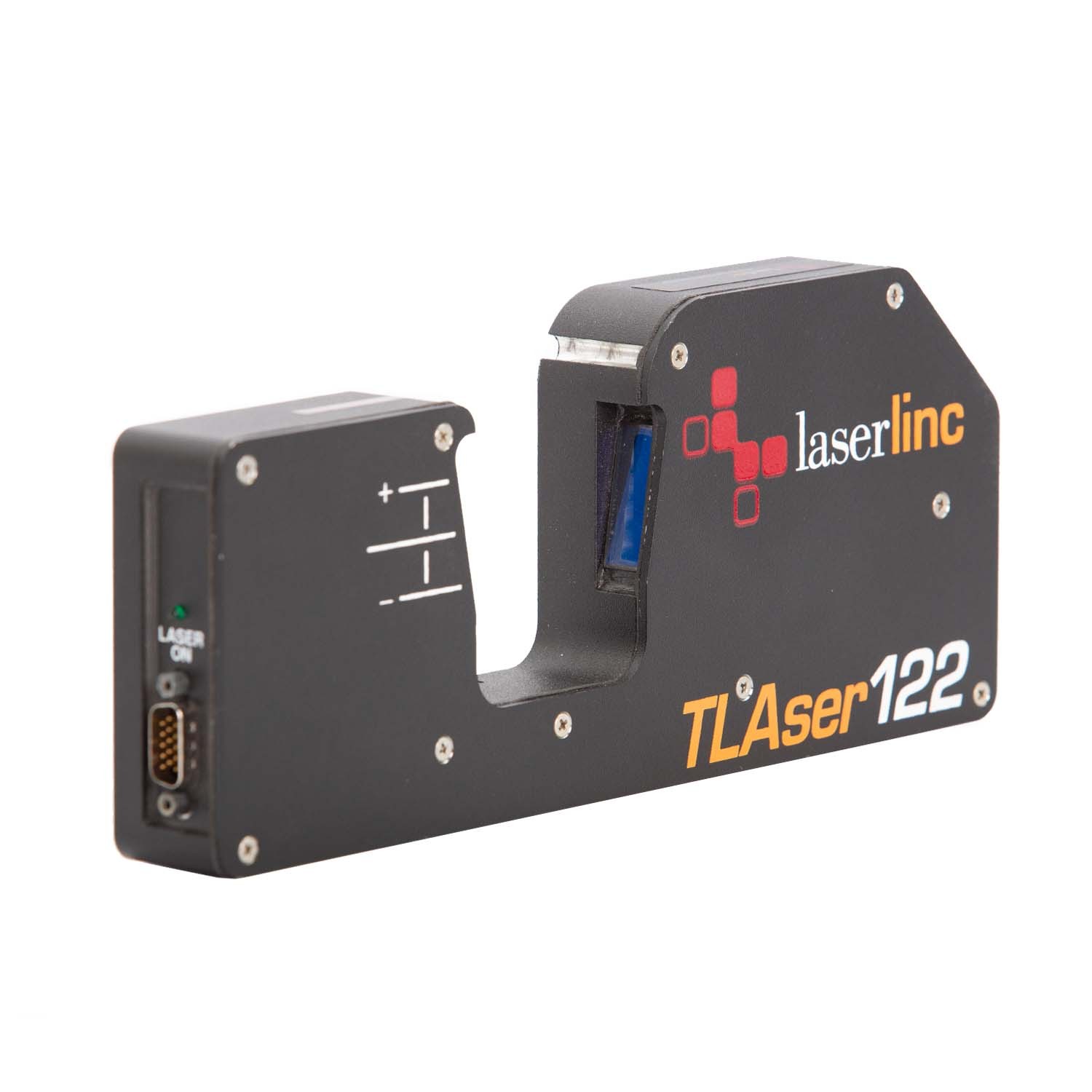

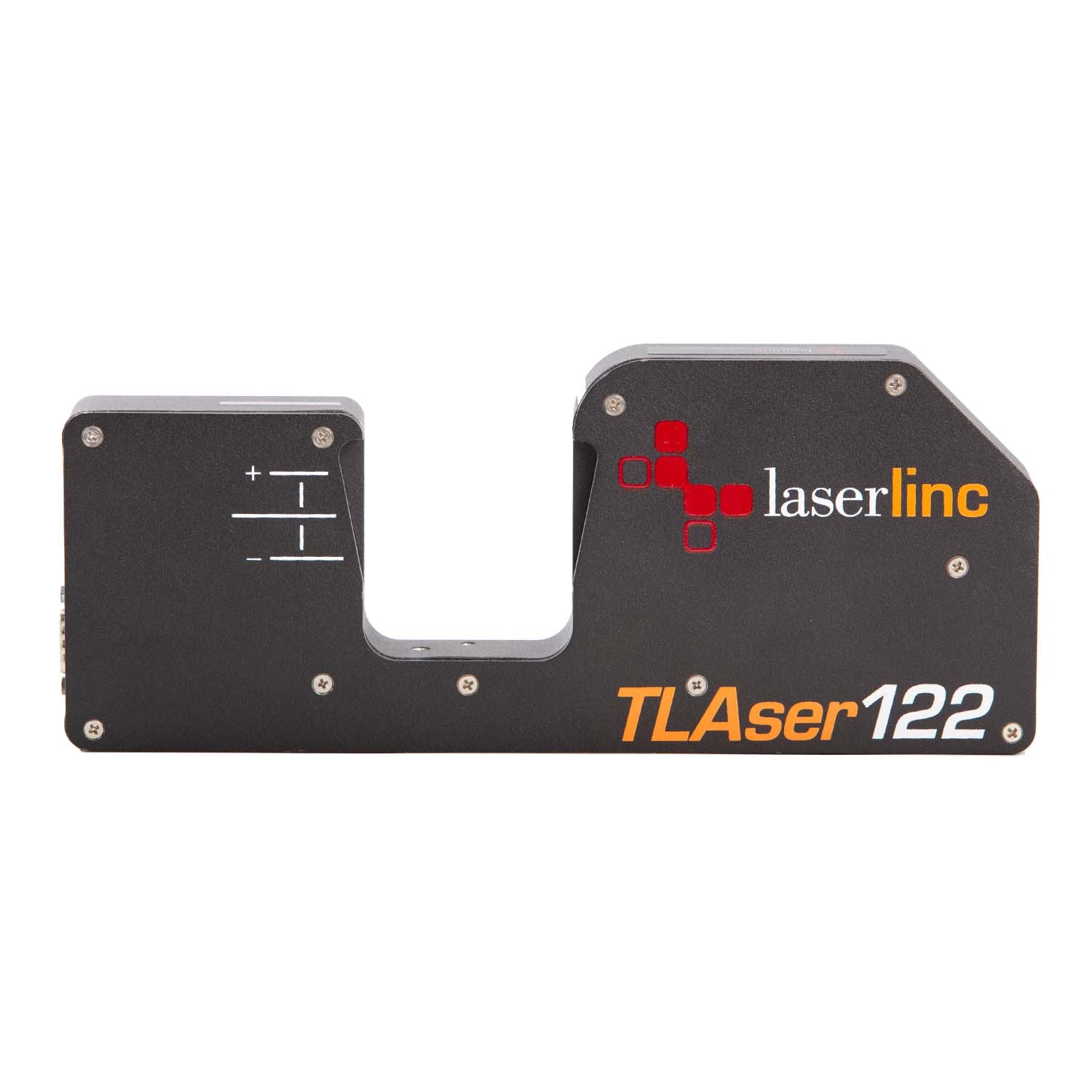

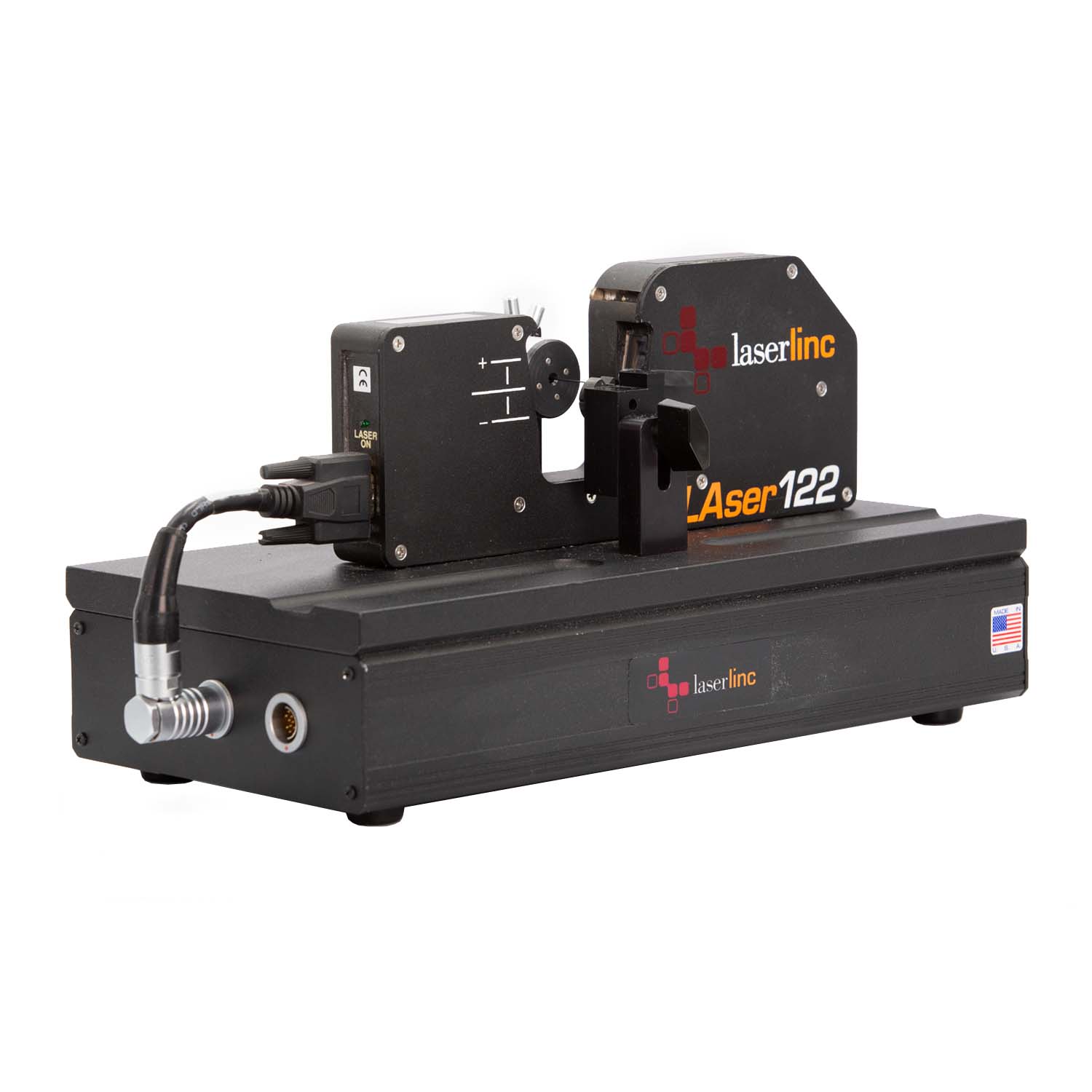

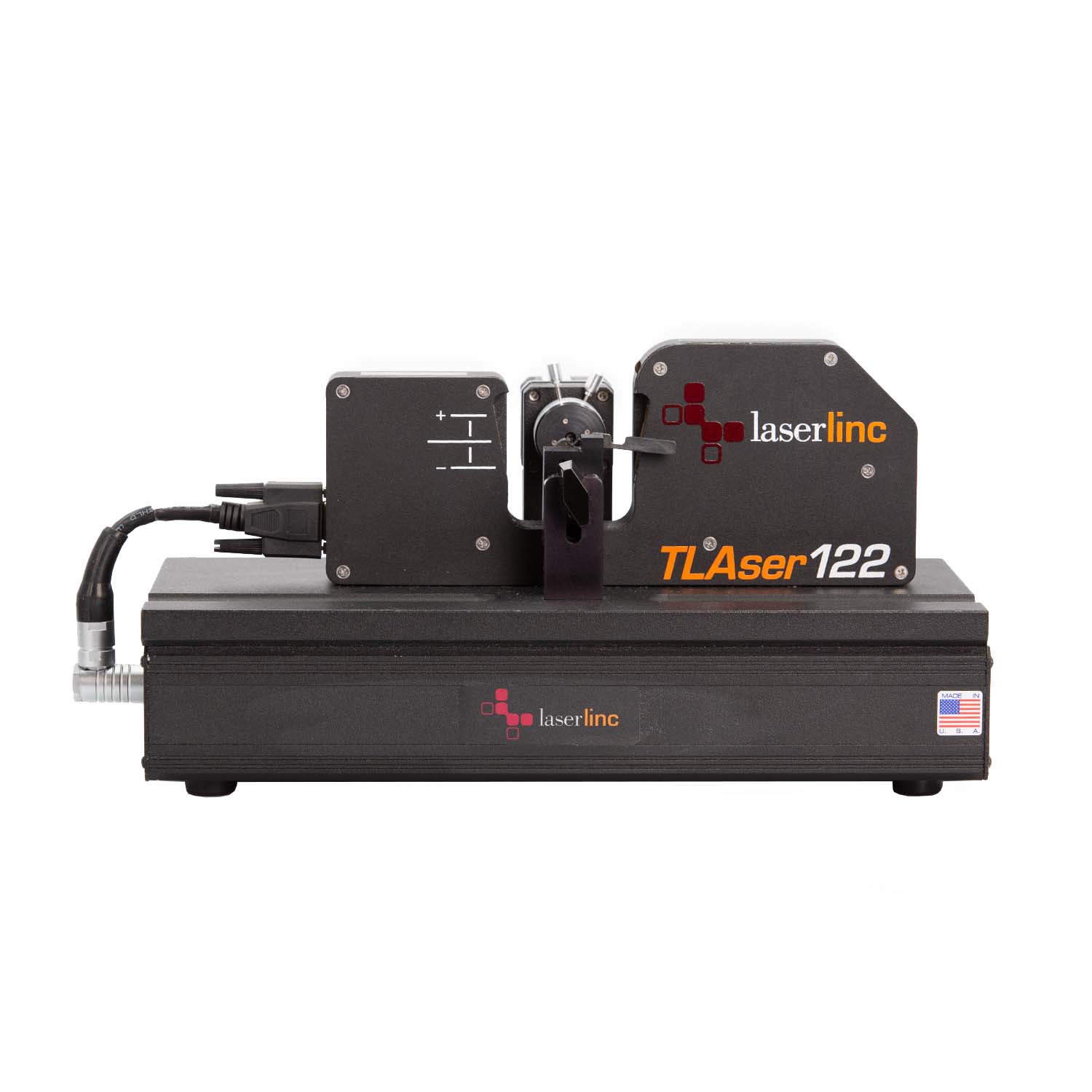

TLASER122
- Measurement range of 0.0015” to 0.866” [0.038mm to 22.0mm]
- Measurement Rate (Hz)¹ (standard): 400
- Use 100 Hz option available for improved measurement performance
- Gate Size .91˝ [23.1mm]
- Approx. Dimensions 4˝ x 10˝ x 1.25˝ [102mm x 254mm x 32mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

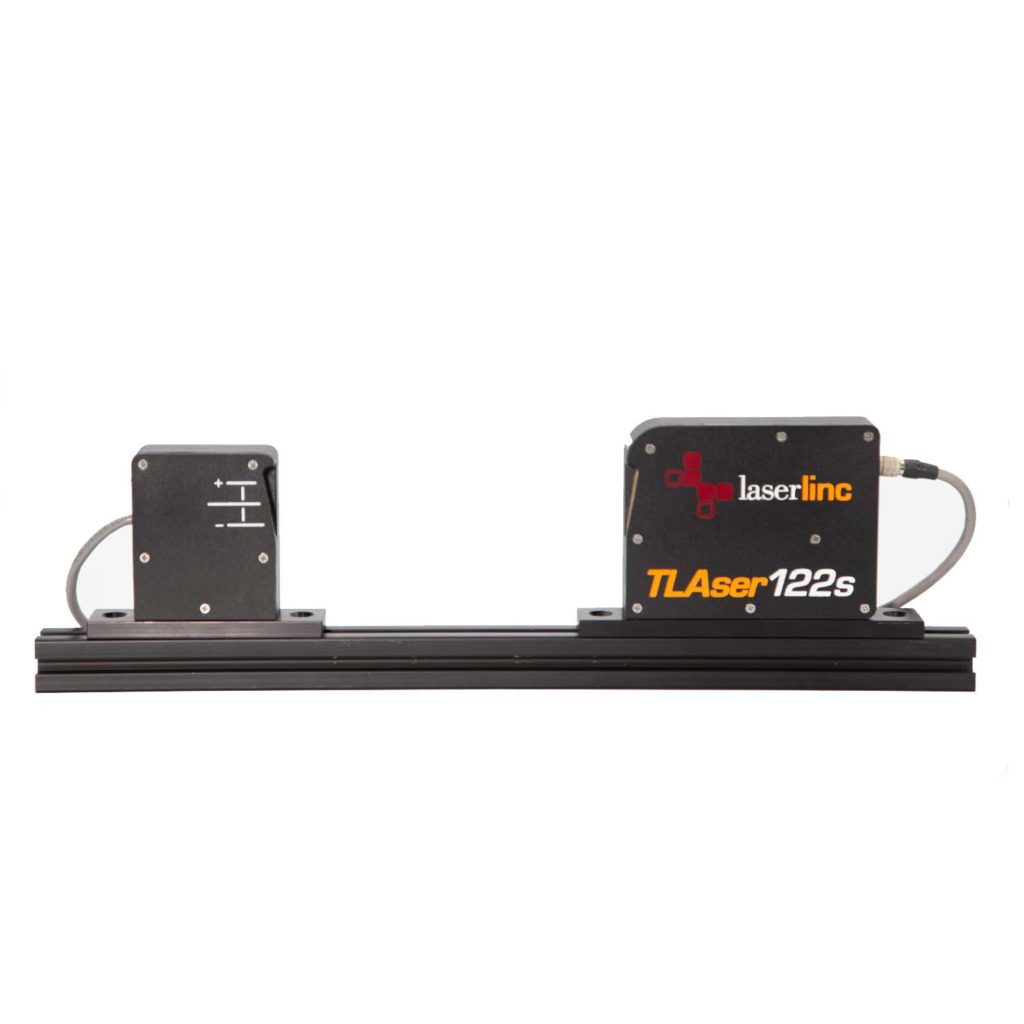

TLASER122s
- Measurement range of .003˝ – .866˝ [.076mm – 22mm]
- Measurement Rate (Hz)¹ (standard): 400
- Use 100 Hz option available for improved measurement performance
- Gate Size .91˝ [23.1mm]
- Approx. Dimensions Transmitter: 4.2˝ x 5.3˝ x 1.25˝ [107mm x 135mm x 32mm] Receiver: 4˝ x 3˝ x 1.25˝ [102mm x 77mm x 32mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

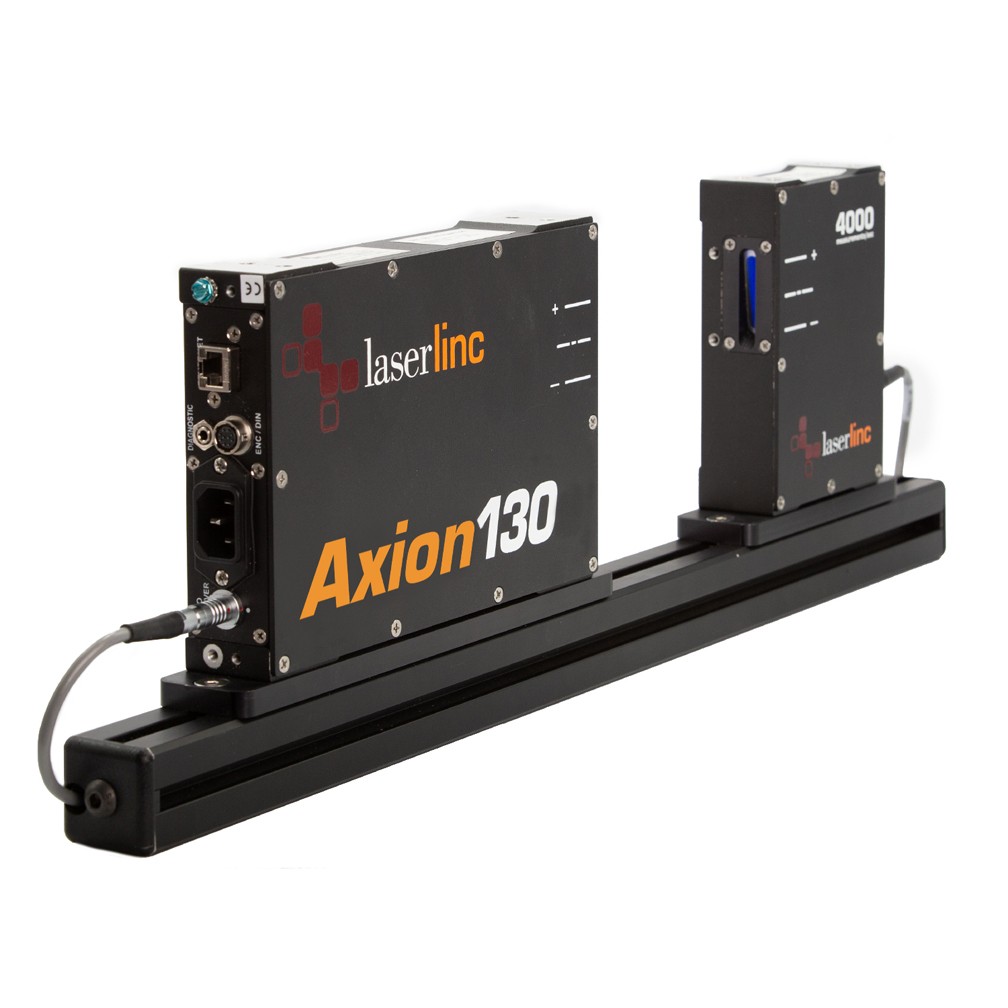

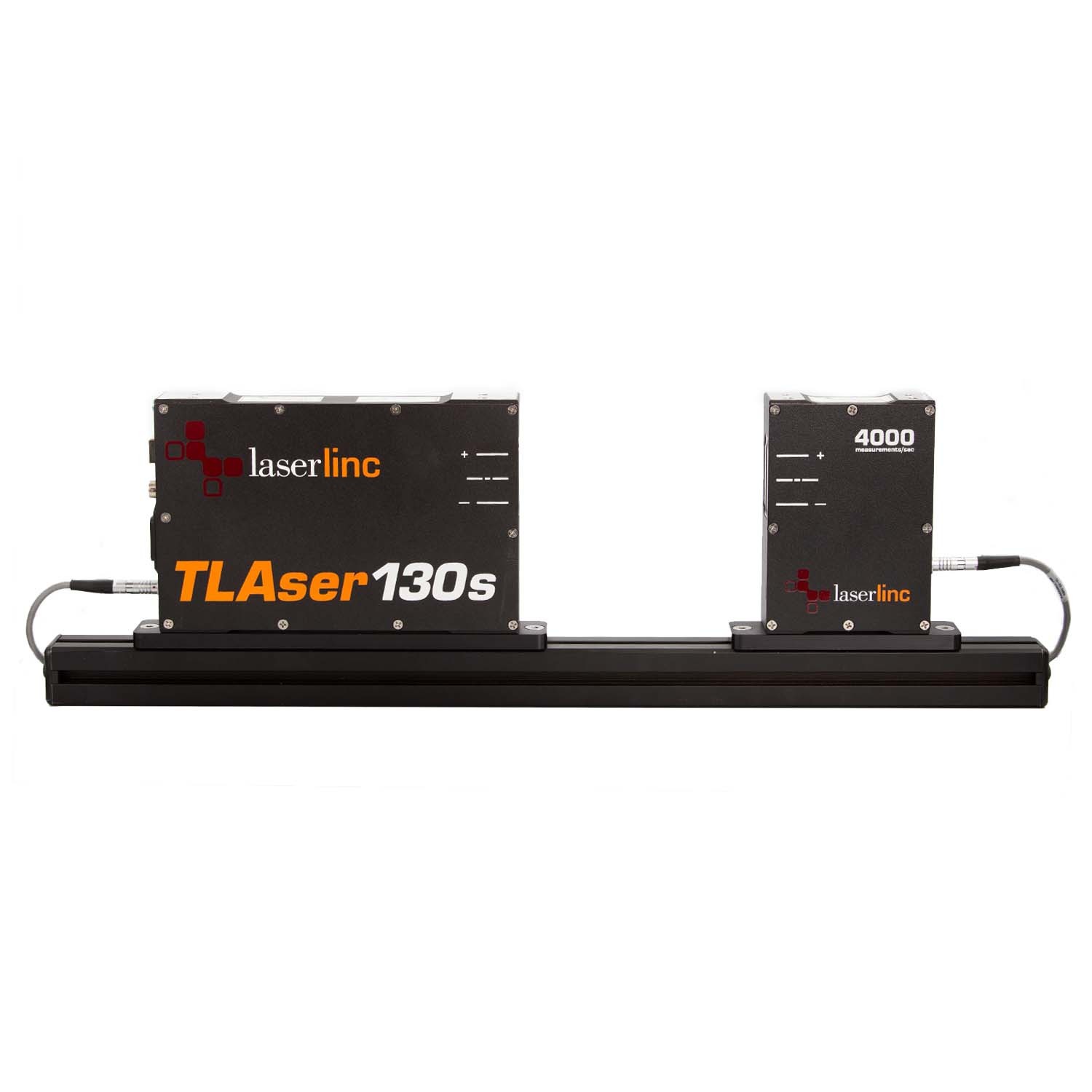

Axion130
- Measurement range of 0.007” to 1.15” [0.178mm to 29.2mm]
- Measurement Rate (Hz)¹ (standard): 1,600 (option): 4,000
- Gate Size 1.18˝ [30mm]
- Approx. Dimensions Transmitter – 4.95˝ x 8.75˝ x 2˝ [126mm x 222mm x 51mm] Receiver – 4.95˝ x 4˝ x 2˝ [126mm x 102mm x 51mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

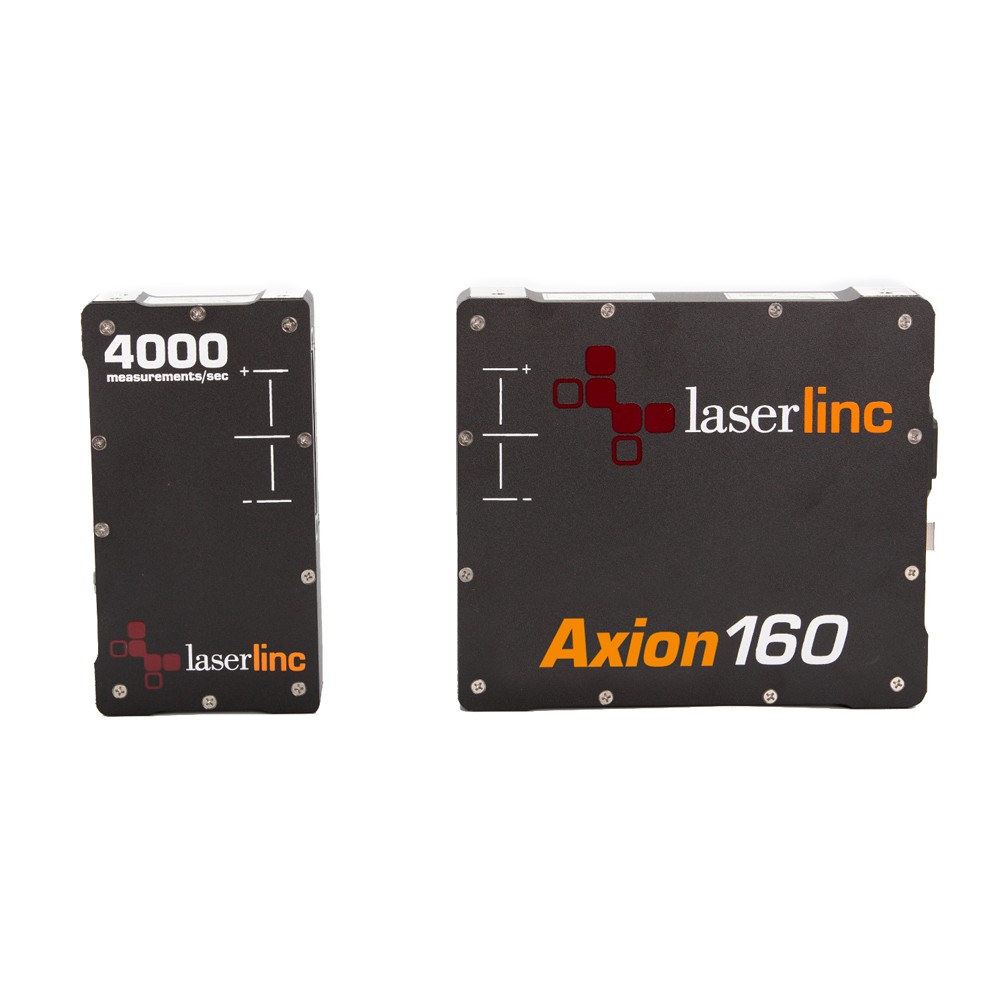

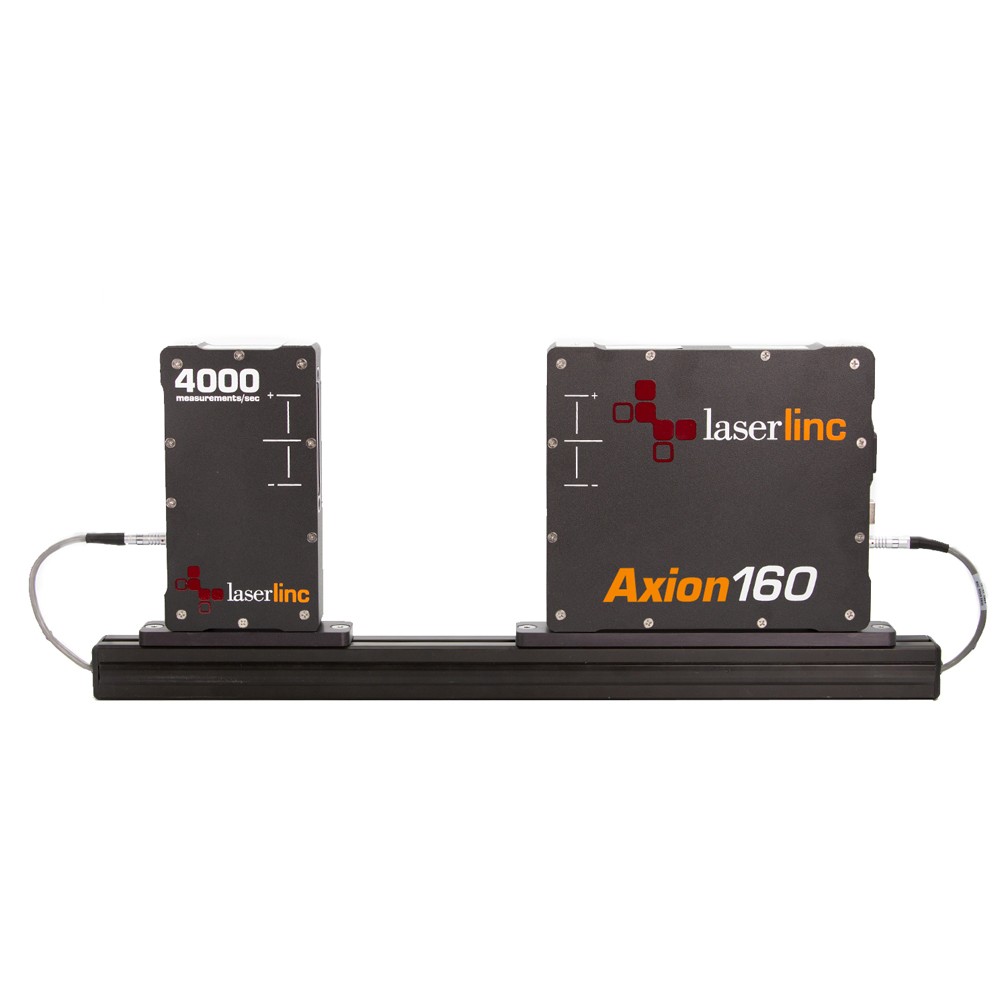

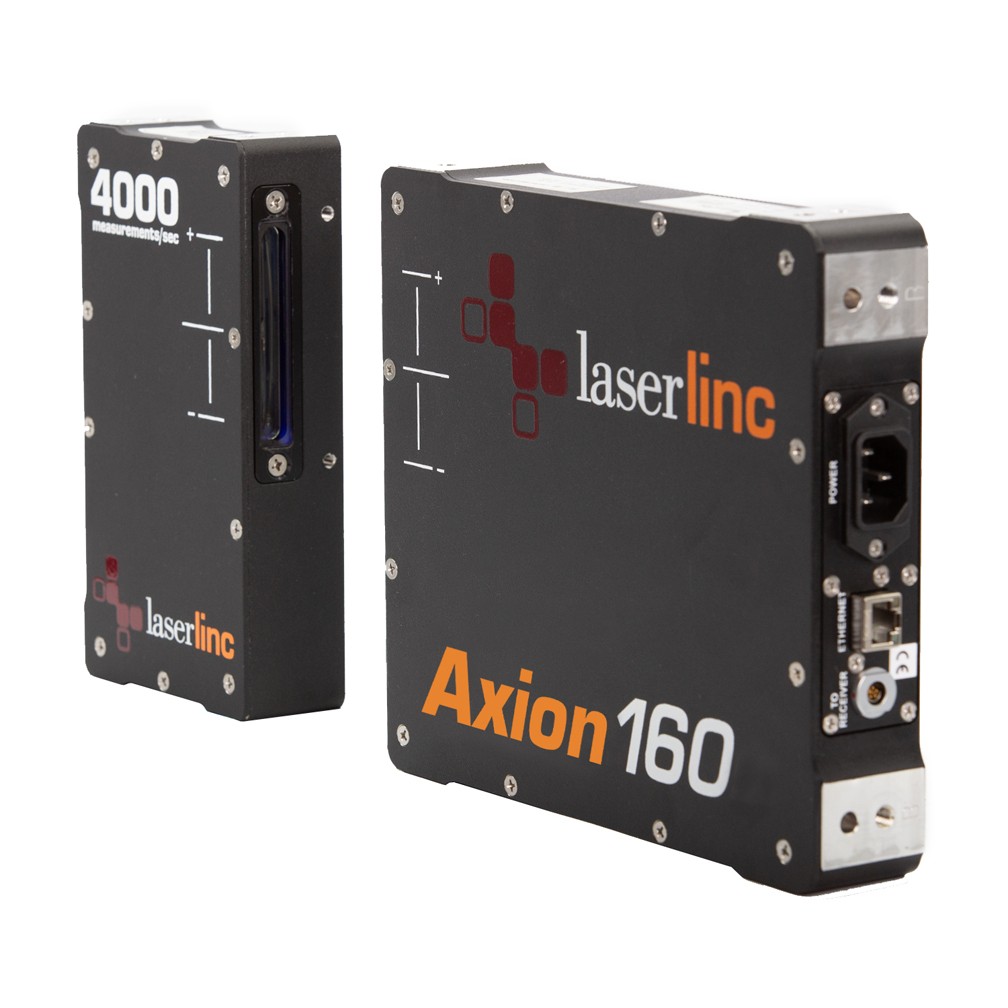

Axion160
- Measurement range of 0.010” to 2.3” [0.254mm to 58.0mm]
- Measurement Rate (Hz)¹ (standard): 1,600 (option): 4,000
- Gate Size 2.36″ [60mm]
- Approx. Dimensions Transmitter – 7.5˝ x 8.5˝ x 2˝ [191mm x 216mm x 51mm] Receiver – 7.5˝ x 4˝ x 2˝ [191mm x 102mm x 51mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

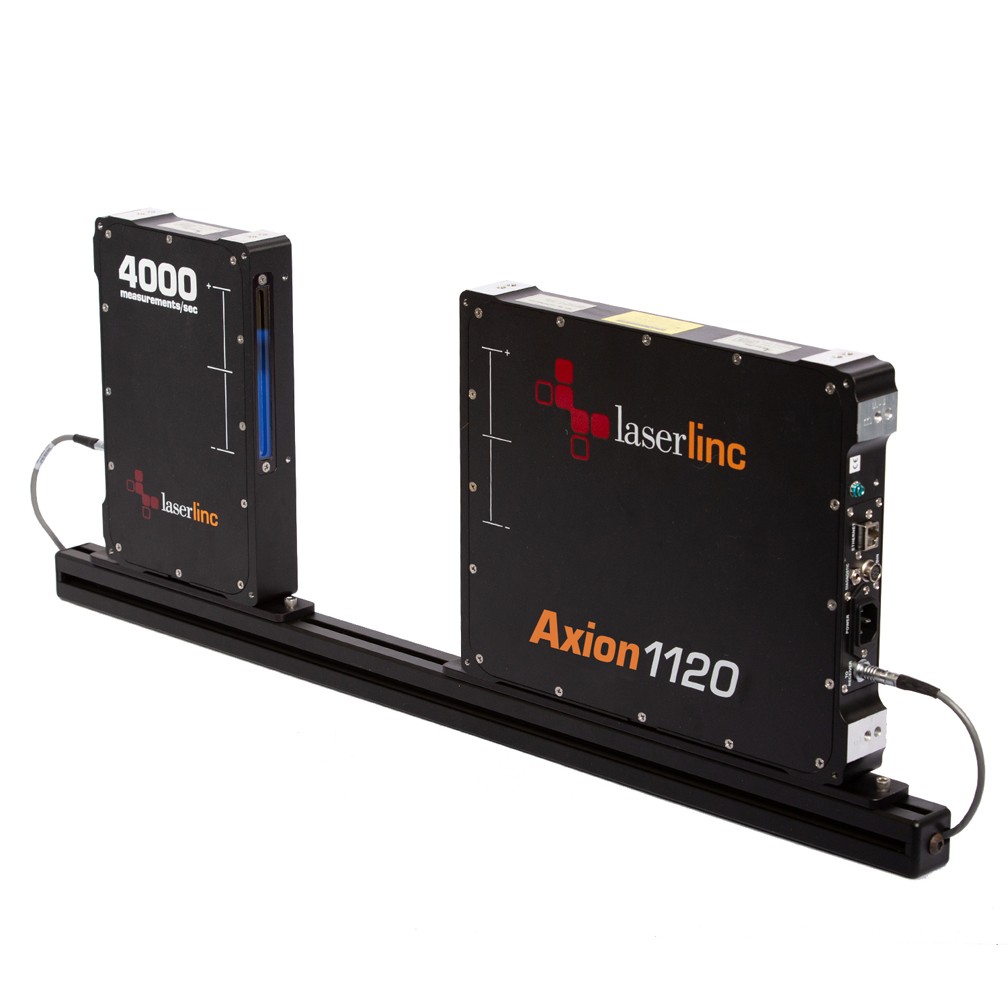

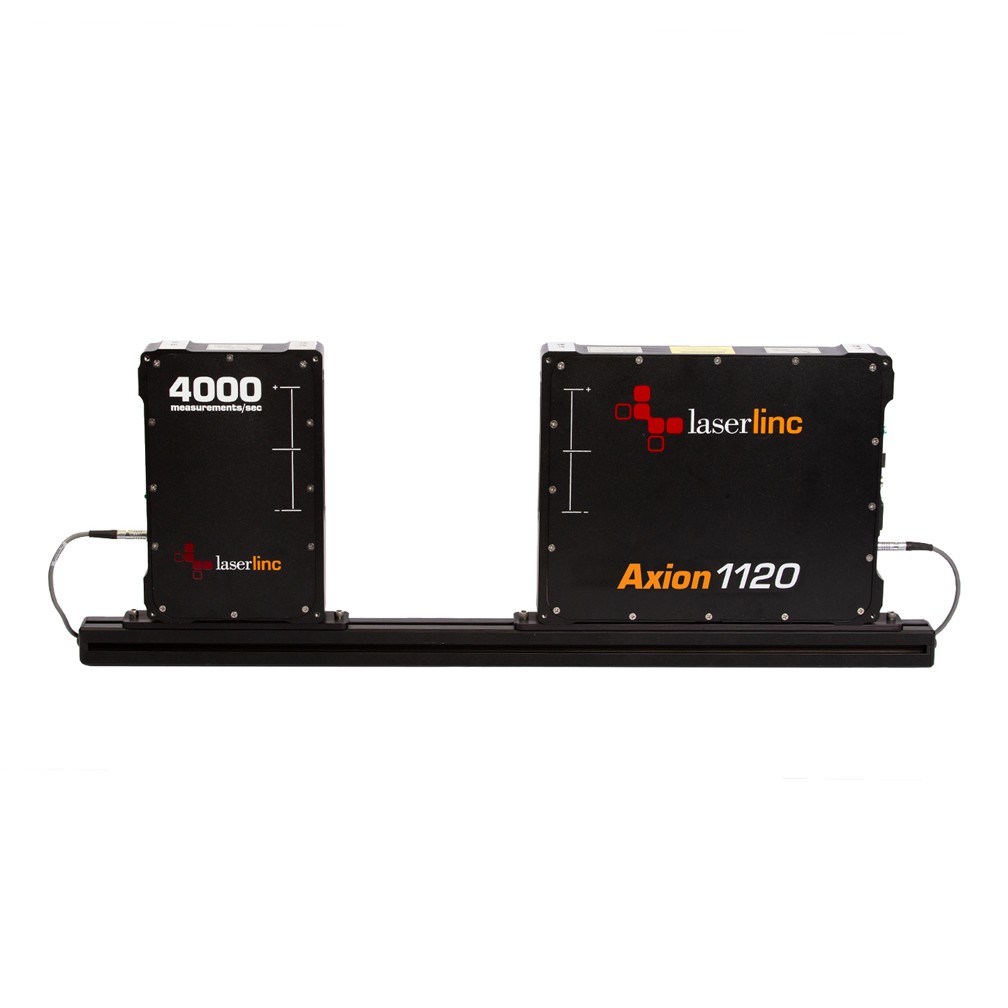

Axion1120
- Measurement range of 0.028” to 4.55” [0.711mm to 116.0mm]
- Measurement Rate (Hz)¹ (standard): 1,600 (option): 4,000
- Gate Size 4.72″ [120mm]
- Approx. Dimensions Transmitter – 10.25˝ x 10.7˝ x 2˝ [260mm x 272mm x 51mm] Receiver – 10.25˝ x 6.5˝ x 2˝ [260mm x 165mm x 51mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty

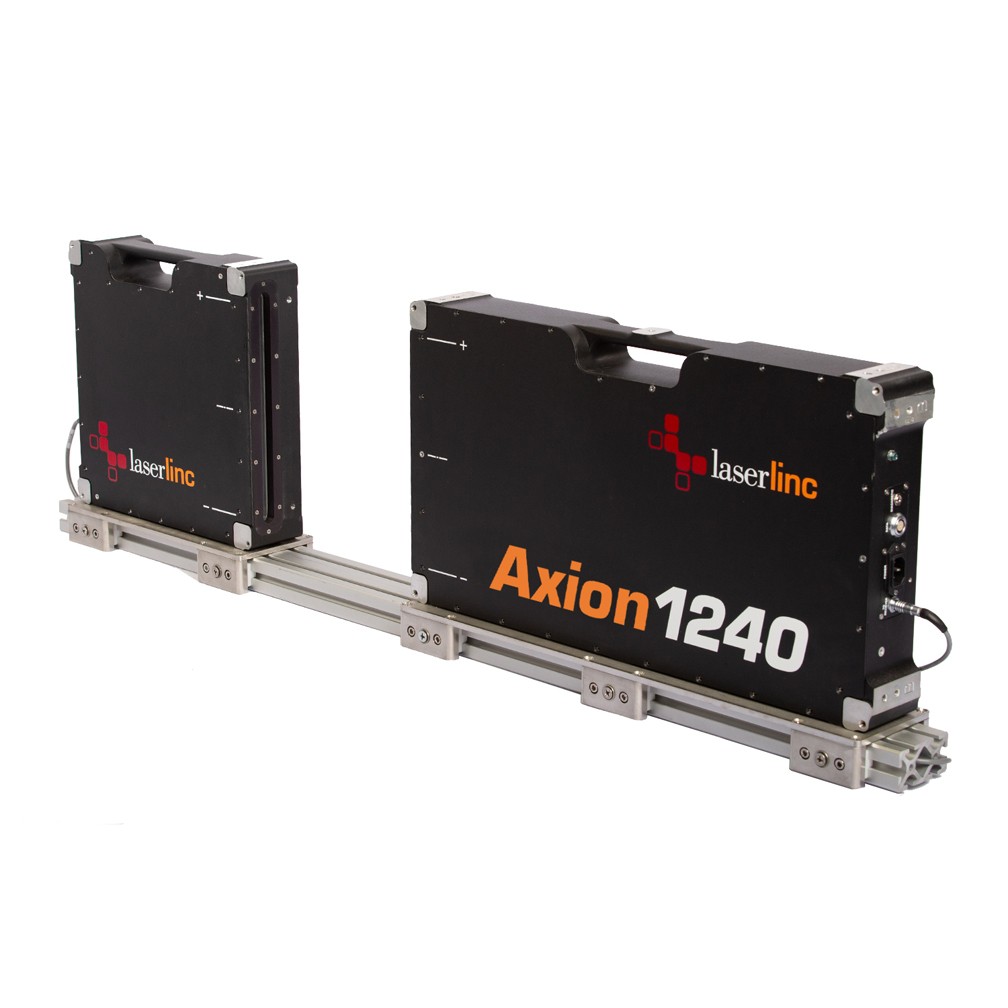

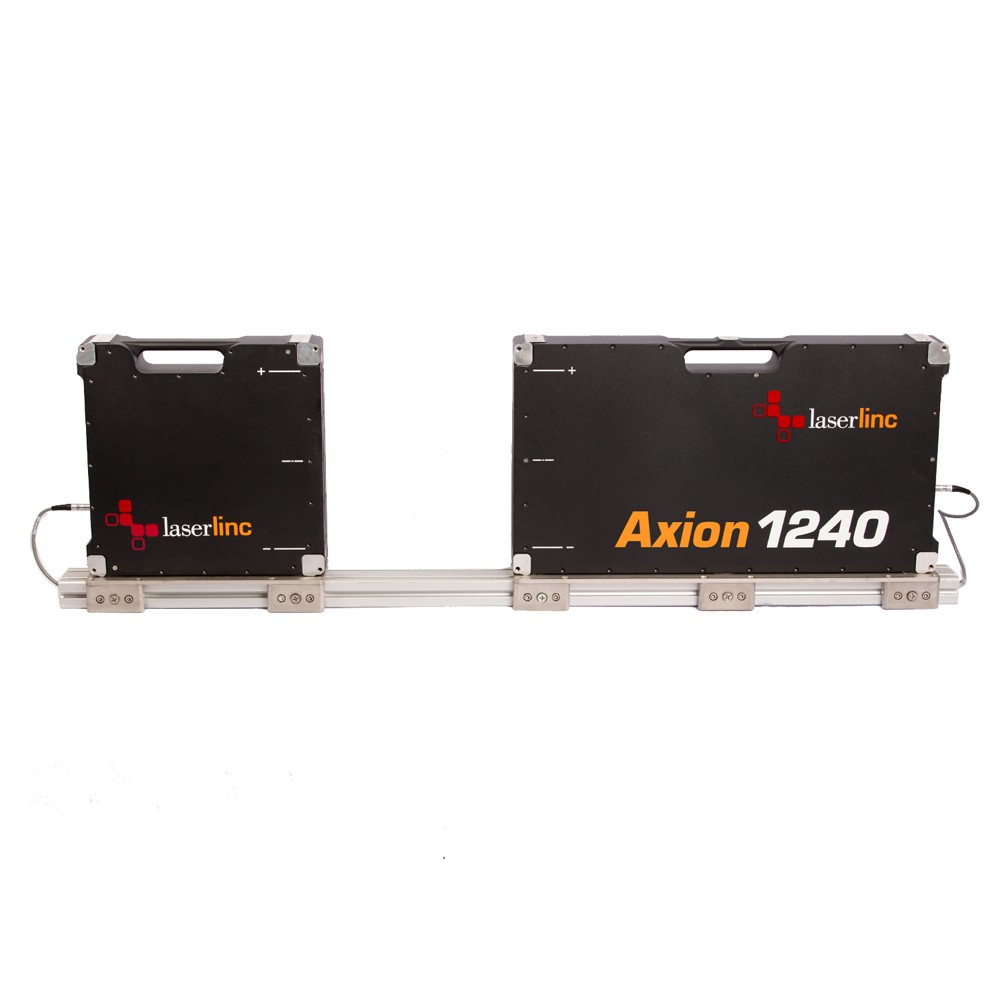

Axion1240
- Measurement range of 0.036” to 9.1” [0.914mm to 231.0mm]
- Measurement Rate (Hz)¹ (standard): 1,600
- Gate Size 9.45″ [240mm]
- Approx. Dimensions Transmitter – 22.4″ x 12.5″ x 3″ [569 x 317.5 x 76.2mm] Receiver – 12.5″ x 12.5″ x 3″ [158.75 x 158.75 x 76.2mm]
- Measure any material, even clear and translucent products
- Mount in any orientation
- Use for in-process or benchtop applications
- Works with the Total Vu™ HMI and SmartLinc™ communication platform
- Available with Ethernet-based NetLinc™ signal interface
- Four-Year Warranty
